XG240R | ViewSonic XG240R 24″ 144Hz Gaming Monitor
The ViewSonic® ELITE XG240R is a 24” Full HD monitor packed with all the speed and features esports and gaming enthusiasts need. Equipped with ViewSonic exclusive RGB lighting technology, ELITE RGB, the XG240R beautifully illuminates gaming setups and synchronizes to other RGB peripherals without any additional software. Featuring an incredible 144Hz refresh rate, as well as AMD FreeSync™ technology, this monitor’s variable refresh rate capabilities virtually eliminate screen tearing and stuttering for fluid gameplay during fast-paced action scenes. A blazing-fast 1ms response time and low input lag provides smooth screen performance even in the most graphic-intense sequences. For a game-winning competitive edge, a Game Mode feature optimizes visuals for FPS, RTS and MOBA. On top of that, a customizable 22-level black stabilization function helps you target enemies lurking in the dark, while the monitor maintains brilliantly rich colors and contrast.
ViewSonic XG240R 24″ 144Hz Gaming Monitor
DISPLAY SIZE (IN.)
24
PANEL TYPE
TN
RESOLUTION
1920 x 1080
STATIC CONTRAST RATIO
1,000:1
DISPLAY
DISPLAY SIZE (IN.)
24
VIEWABLE AREA (IN.)
24
PANEL TYPE
TN
RESOLUTION
1920 x 1080
RESOLUTION TYPE
HD (1920×1080)
STATIC CONTRAST RATIO
1,000:1
DYNAMIC CONTRAST RATIO
120,000,000:1
LIGHT SOURCE
LED
BRIGHTNESS
350 cd/m2
COLORS
16.7M
COLOR SPACE SUPPORT
6 bit + A-FRC
ASPECT RATIO
16:9
RESPONSE TIME (TYPICAL GTG)
5ms
RESPONSE TIME (GTG W/OD)
1ms
VIEWING ANGLES
170º horizontal, 160º vertical
BACKLIGHT LIFE (HOURS)
30,000
PANEL SURFACE
Anti-glare, Hard coating (3H)
REFRESH RATE (HZ)
144
ADAPTIVE SYNC
AMD FreeSync
COMPATIBILITY
PC RESOLUTION (MAX)
1920 x 1080
MAC® RESOLUTION (MAX)
1920 x 1080
CONNECTOR
USB 3.0 TYPE A
2
USB 3.0 TYPE B
1
3.5MM AUDIO OUT
1
HDMI 1.4
2
DISPLAY PORT
1
AUDIO
INTERNAL SPEAKERS
2W (x2)
POWER
ECO MODE (CONSERVE)
18W
ECO MODE (OPTIMIZED)
24W
CONSUMPTION (TYPICAL)
30W
CONSUMPTION (MAX)
32W
VOLTAGE
100-240 VAC, 50-60Hz
STAND-BY
0.5W
POWER SUPPLY
Internal
ADDITIONAL HARDWARE
KENSINGTON LOCK SLOT
1
CONTROLS
PHYSICAL CONTROLS
Key Buttons 1, 2, 3, 4, 5, 6 (Power)
ON SCREEN DISPLAY
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)
OPERATING CONDITIONS
TEMPERATURE
32-104º F (0 – 40º C)
HUMIDITY (NON-CONDENSING)
20-90%
MOUNT
VESA COMPATIBLE
100 x 100 mm
VIDEO SIGNAL
FREQUENCY HORIZONTAL
HDMI: 15 ~ 160KHz, DisplayPort: 30 ~ 160KHz
FREQUENCY VERTICAL
HDMI: 24 ~ 144Hz, DisplayPort: 48 ~ 146Hz
VIDEO INPUT
DIGITAL SYNC
TMDS for HDMI (v1.4), PCI-E for DisplayPort (v1.2)

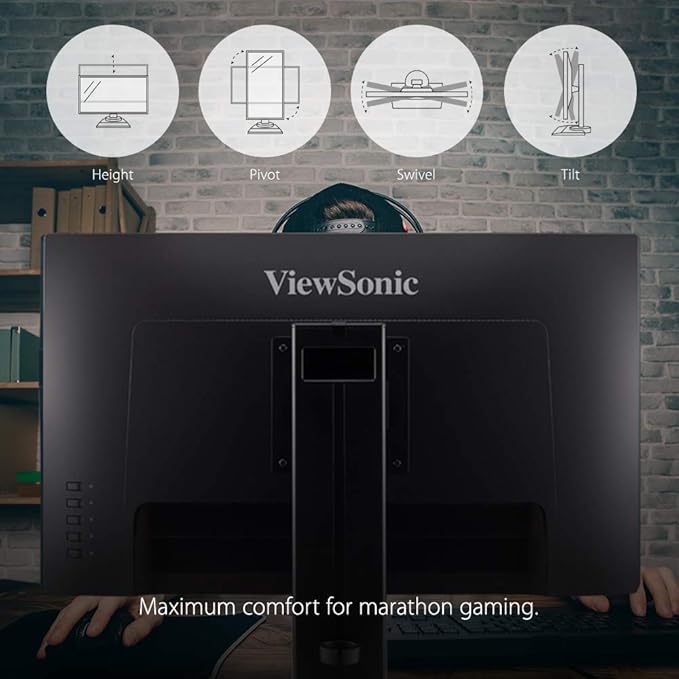

ERGONOMICS
HEIGHT ADJUST
120 mm / 4.7 in
SWIVEL
45º
PIVOT (RIGHT/LEFT)
90º / 0º
TILT (FORWARD/BACK)
5º / 20º
WEIGHT (IMPERIAL)
NET (LBS)
14.8
NET WITHOUT STAND (LBS)
7.5
