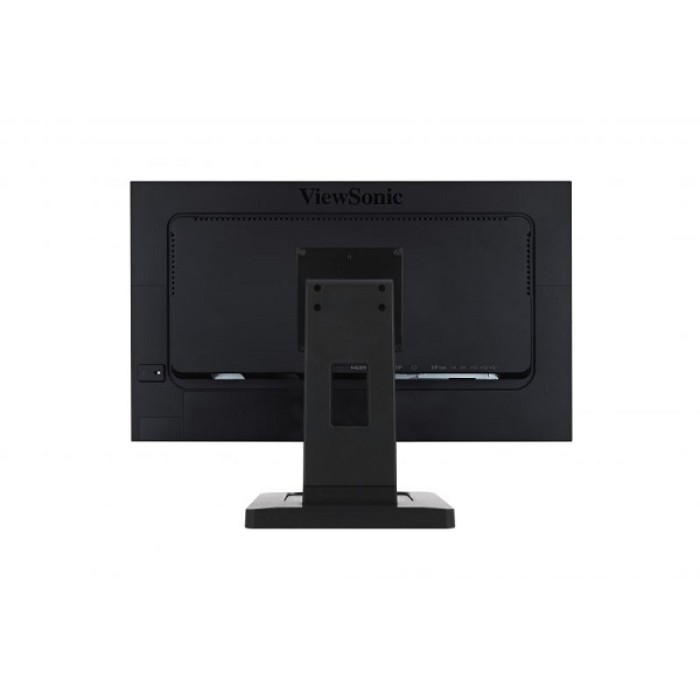

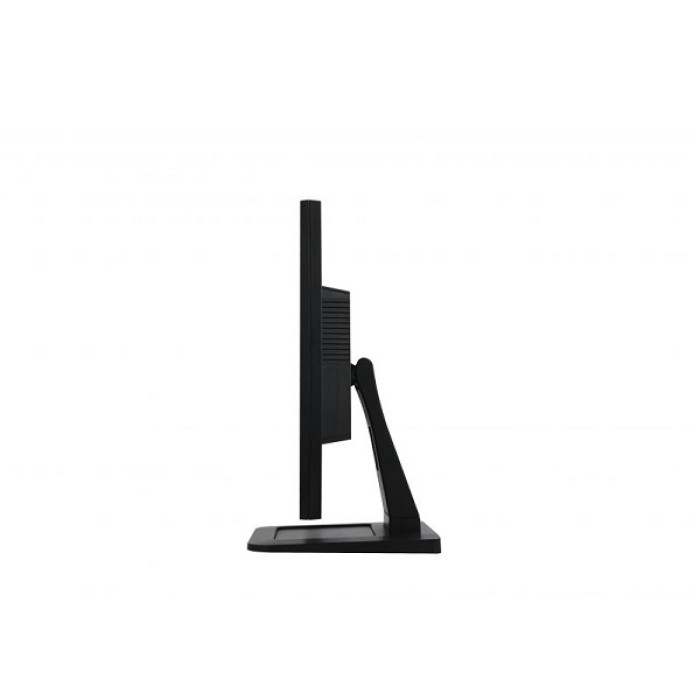

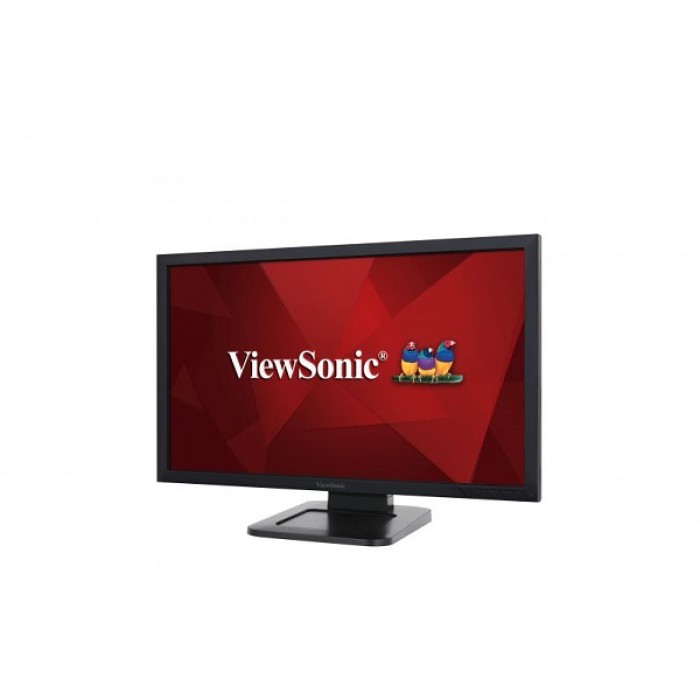

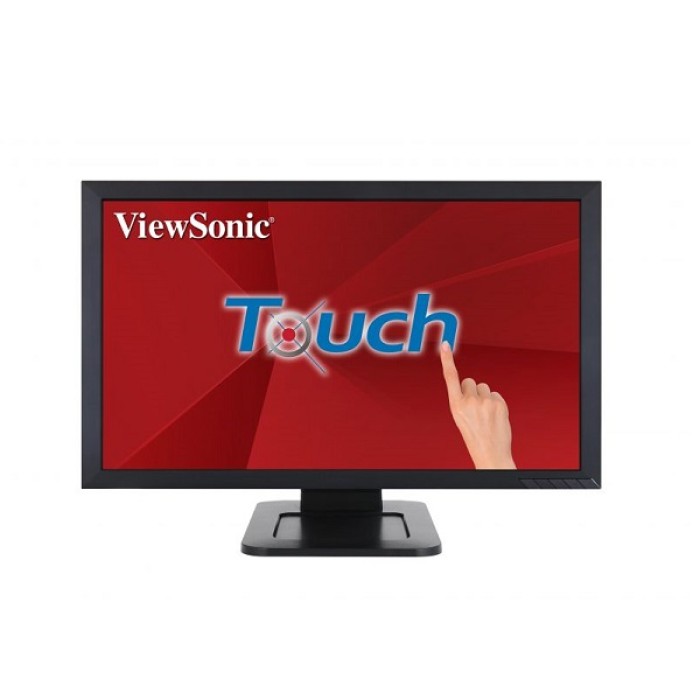

TD2421 | ViewSonic TD2421 24″ Full-HD Touch Screen Monitor
Great for public kiosks, POS displays, and other retail and commercial applications, the ViewSonic® TD2421 dual-point optical touch monitor lets users execute two-finger pinches, taps, and swipes for fast and intuitive navigation. With Full HD 1920×1080 resolution, 3000:1 static contrast ratio, and SuperClear MVA technology, the TD2421 delivers stunning brightness and contrast with amazing screen performance at nearly any viewing angle. Flexible connectivity options include HDMI, VGA, DVI, and USB ports, and a VESA-mountable design offers additional convenience for use as a wall-mounted display. What’s more, ViewSonic’s exclusive ViewMode feature provides intuitive presets that deliver optimized screen performance in different applications. In addition, Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods for improved productivity. Whether in retail or deployed in a high-traffic commercial setting, its scratch-resistant surface stands up to heavy use and safeguards its high quality touch experience.
ViewSonic TD2421 24″ Full-HD Touch Screen Monitor
DISPLAY SIZE (IN.)
24
RESOLUTION
1920 x 1080
STATIC CONTRAST RATIO
3,000:1
RESPONSE TIME (TYPICAL GTG)
5ms
DISPLAY
DISPLAY SIZE (IN.)
24
VIEWABLE AREA (IN.)
23.6
RESOLUTION
1920 x 1080
STATIC CONTRAST RATIO
3,000:1
DYNAMIC CONTRAST RATIO
50,000,000:1
BRIGHTNESS
250 cd/m2
BACKLIGHT LIFE (HOURS)
40,000
RESPONSE TIME (TYPICAL GTG)
5ms
PANEL TYPE
MVA
COLORS
16.7M
VIEWING ANGLES
178º horizontal, 178º vertical
LIGHT SOURCE
LED
PANEL SURFACE
6H Scratch Resistant Surface Hardness
ASPECT RATIO
16:9
COMPATIBILITY
PC RESOLUTION (MAX)
1920 x 1080
TOUCH
TOUCH TECHNOLOGY
Optical
TOUCH POINTS
2-Point Touch

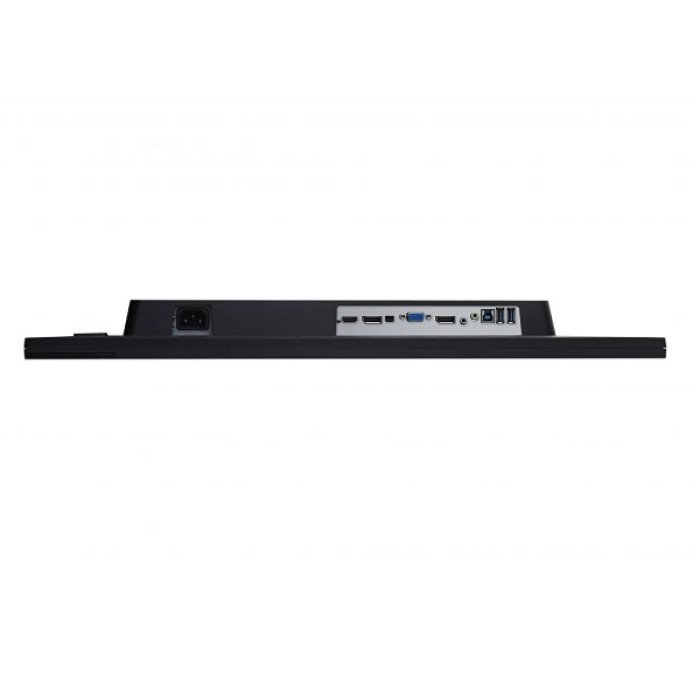

CONNECTOR
USB 2.0 TYPE A
2
USB 2.0 TYPE B
1
VGA
1
HDMI 1.4
1
DVI-I
1
AUDIO
INTERNAL SPEAKERS
2W (x2)
VIDEO SIGNAL
FREQUENCY HORIZONTAL
Analog and Digital: 24 ~ 82KHz
FREQUENCY VERTICAL
Analog: 50 ~ 75Hz, Digital: 50 ~ 75Hz
VIDEO INPUT
ANALOG SYNC
Analog: Separate Sync / Composite Sync / Sync on Green, Digital: TMDS
POWER
CONSUMPTION (TYPICAL)
16.5W
CONSUMPTION (MAX)
28W
VOLTAGE
AC 100-240V (universal), 50-60Hz
STAND-BY
0.5W
CONTROLS
PHYSICAL CONTROLS
GameMode, 1, 2, 3, 4, Power
ON SCREEN DISPLAY
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)
OPERATING CONDITIONS
TEMPERATURE
32-104º F (0 – 40º C)
HUMIDITY (NON-CONDENSING)
20-90%
ERGONOMICS
TILT (FORWARD/BACK)
6º / 22º
ADDITIONAL HARDWARE
KENSINGTON LOCK SLOT
1
MOUNT
VESA COMPATIBLE
100 x 100 mm
WEIGHT (METRIC)
GROSS (KG)
7.3
NET (KG)
5.2
NET WITHOUT STAND (KG)
4.3
WEIGHT (IMPERIAL)
NET (LBS)
11.4
NET WITHOUT STAND (LBS)
9.5
GROSS (LBS)
16
DIMENSIONS (METRIC) (WXHXD)
PACKAGING (MM)
640 x 460 x 200
PHYSICAL (MM)
571 x 392 x 240
