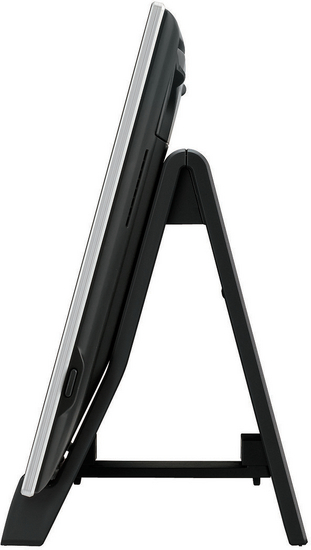

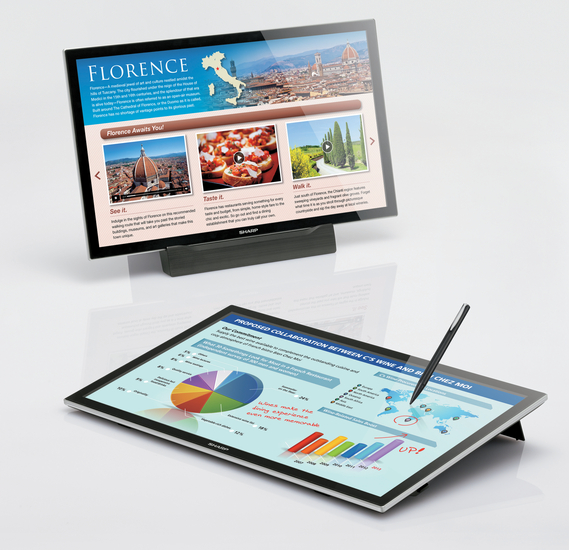

LL-S201A | Sharp LL-S201A 20″ Full-HD Multi-Touch Monitor
20-Inch-Class Full HD LCD Monitor with Extreme Touch Sensitivity
Introducing a highly responsive touchscreen monitor that brings a new dimension of interactive functionality to the workplace. This 20-inch-class touchscreen LCD panel delivers full HD resolution with performance-enhancing UV2A technology. Its 10-point multi-touch screen provides extremely quick response for writing and touch gestures. When connected to a device running Windows® 8, the monitor serves as a beautifully intuitive interface.
Sharp LL-S201A 20″ Full-HD Multi-Touch Monitor
| MODEL NAME | LL-S201A | |
|---|---|---|
| INSTALLATION | Landscape/portrait* (*Portrait not supported when used with stand) | |
| LCD PANEL | 20-inch-class (19 1/2-inch [49.5 cm] diagonal) UV2A LCD (16 : 9) | |
| MAX. RESOLUTION | 1,920 x 1,080 pixels | |
| MAX. DISPLAY COLOURS (APPROX.) | 16.7 million colours | |
| PIXEL PITCH | 0.225 x 0.225 mm | |
| BRIGHTNESS*1 | 250 cd/m2 | |
| CONTRAST RATIO | 3,000 : 1 | |
| VIEWING ANGLES (H/V) | 178°/178° (CR ≥ 10) TBD | |
| ACTIVE SCREEN AREA (W X H) | 432 x 243 mm | |
| RESPONSE TIME | 5 ms (grey to grey, avg.) | |
| BACKLIGHT | LED, edge-lit | |
| TOUCHSCREEN | TOUCH TECHNOLOGY | Capacitive touch |
| MULTI TOUCH | 10 points | |
| SUPPORTED OS | Windows® 8*2, Windows® 7, Windows Vista®*3, Windows® XP*3 | |
| COMPUTER INPUT | PLUG & PLAY | VESA DDC2B |
| INPUT TERMINALS | DisplayPort x 1, HDMI™/MHL™ x 1 | |
| OUTPUT TERMINALS | Micro-USB x 1 (for touchscreen operation), 3.5 mm-diameter mini stereo jack x 1 | |
| BUILT-IN SPEAKERS | 1 W + 1 W | |
| MOUNTING | VESA (4 points) 100 x 100 mm pitch | |
| POWER SUPPLY*4 | AC 100 V–240 V, 50/60 Hz, DC 19 V | |
| POWER CONSUMPTION | 26 W / 35 W (when charging a connected device via MHL) | |
| ENVIRONMENTAL CONDITIONS | OPERATING TEMPERATURE | 0°C to 35°C |
| OPERATING HUMIDITY | 20% to 80% RH at 35°C (no condensation) | |
| DIMENSIONS (W X D X H) (APPROX.) | 463.8 x 25.2 x 274.8 mm (18 1/4″ x 1″ x 10 13/16″) | |
| WEIGHT (APPROX.) | Without stand: 2.3 kg (5.1 lbs) With stand: 2.9 kg (6.4 lbs) | |
| MAIN ACCESSORIES | Stand x 1, touch pen x 1, power cord x 1, AC adaptor x 1, USB cable x 1, CD-ROM, set-up manual | |
