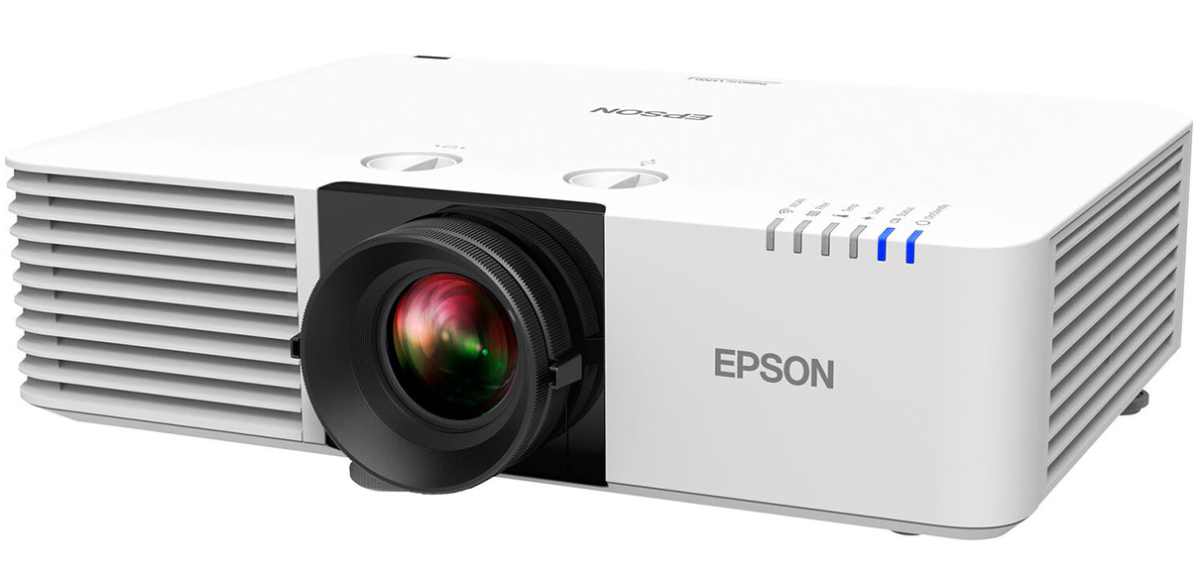

EB-L520U | Epson EB-L520U 5,200 lumens Full HD WUXGA Projector
Epson EB-L520U 5,200 lumens Full HD WUXGA Projector
Description
Epson EB-L520U 5,200 lumens Full HD WUXGA Projector
Deliver professional content with sharp images and bright colours to any audience. The EB-L520U is designed to project a scalable laser display up to 500 inches, and offers a range of connectivity options to make content sharing an easy, seamless experience.
Featuring 5,200 lumens high-brightness capability, along with Full HD, WUXGA, 16:6 wide screen, support for 4K input and detail enhancement technology, it gives users brighter, more vivid displays of up to 500”.
Providing more premium features than you would typically expect to find in this display class, the EB-L520U delivers edge-blending and geometric correction to achieve one seamless large-format display. And for multimedia content, you can playback content without any lagging, and create playlists and set schedules directly from USB memory, all thanks to H.264 advanced video coding and the Epson Content Manager.
Flexibility is another hallmark of this display solution – a split-screen function allows two or four images from different sources to be combined in one large display; wired or optional wireless1 with support for Miracast1 makes connectivity simple and straightforward; and HDBaseT content can be shared and distributed without compromising on quality.
Thanks to the renowned market leading2 reliability of Epson laser displays, this fit and forget solution eliminates the need for regular maintenance. And for added confidence the EB-L520U comes with a standard 3-year warranty to provide lasting peace of mind.
Projection System
3LCD Technology, RGB liquid crystal shutter
LCD Panel
0.67 inch with C2 Fine
Color Light Output
5,200 Lumen- 3,640 Lumen (economy) In accordance with IDMS15.4
White Light Output
5,200 Lumen – 3,640 Lumen (economy)
Resolution
WUXGA, 1920 x 1200, 16:10
High Definition
Full HD
Aspect Ratio
16:10
Contrast Ratio
2,500,000 : 1
Light source
Laser
Laser Light source
20,000 hours Durability High, 30,000 hours Durability Eco
Keystone Correction
Manual vertical: ± 30 °, Manual horizontal ± 30 °
Colour Video Processing
10 Bits
2D Vertical Refresh Rate
192 Hz – 240 Hz
Colour Reproduction
Upto 1.07 billion colours
Optical
Throw Ratio
1.35 – 2.20:1
Zoom
Manual, Factor: 1 – 1.6
Projection Lens Zoom Ratio
1.35 – 2.2 : 1
Lens
Optical
Screen Size
50 inches – 500 inches
Projection Lens F Number
1.5 – 1.7
Projection Lens Focal Length
20 mm – 31.8 mm
Projection Lens Focus
Manual
Offset
27 : 1
Connectivity
USB Display Function
3 in 1: Image / Mouse / Sound
Interfaces
RS-232C, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN a/n (5GHz) (optional), VGA in (2x), VGA out, HDMI in (2x), HDBaseT, Miracast (optional), Stereo mini jack audio out, Stereo mini jack audio in (2x), USB 2.0 Type A, USB 2.0 Type B
Epson iProjection App
Ad-Hoc / Infrastructure
Advanced Features
Security
Kensington lock, Padlock, Security cable hole, Wireless LAN unit lock
2D Colour Modes
Dynamic, Cinema, Presentation, sRGB, DICOM SIM
Other features
Arc Correction, Built-in speaker, Easy OSD pre-setting, Edge Blending, Long light source life, PC Free, Quick Corner, Screen share, Ultra-wide display (16:6), iProjection AppVideo Color Modes
Cinema, Dynamic, Presentation, sRGB, DICOM SIMProjector control
via: AMX, Crestron, Control4, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery ProtocolGeneral
Power consumption
293 Watt, 223 Watt (economy), 0.3 Watt (standby)Supply Voltage
AC 100 V – 240 V, 50 Hz – 60 HzProduct dimensions
440 x 122 x 304 mm (Width x Depth x Height)Product weight
7.7 kg
Noise Level
Normal: 31 dB (A) – Economy: 23 dB (A)
Supported Temperature
Storage -10° C – 60° C
Supported Humidity
Operation 20% – 80%, Storage 10% – 90%
Included Software
iProjection
Options
Document camera, External Speaker, HDBaseT Transmitter, Wireless LAN unit
Loudspeaker
10 Watt
What’s in the box
Power cable, Remote control incl. batteries, User guide, Warranty Documents
