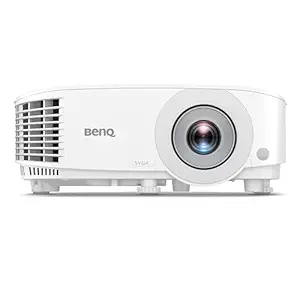

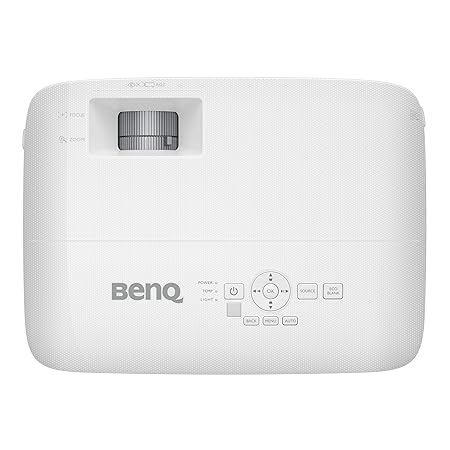

• BenQ MS560 SVGA 4000 Lumen Projector

MS560 | BenQ MS560 SVGA 4000 Lumen Projector

BenQ MS560 SVGA 4000 Lumen Projector

  • 4000 ANSI Lumen High brightness and 20,000:1 High Contrast
  • Exclusive Data Review Mode Showcases Text and Charts in Detail
  • SmartEco Mode Saves Lamp Power Up To 70%


BenQ MS560 SVGA 4000 Lumen Projector

BenQ MS560 SVGA 4000 Lumen Projector

  • 4000 ANSI Lumen High brightness and 20,000:1 High Contrast
  • Exclusive Data Review Mode Showcases Text and Charts in Detail
  • SmartEco Mode Saves Lamp Power Up To 70%
All Specifications

BenQ MS560 SVGA 4000 Lumen Projector Projection System

Projection System

DLP
DMD size

0.55″

Marketing

Product Features

1.1X, TR 1.96-2.15, HDMIx

Display

Brightness (ANSI lumens)

4000
Native Resolution

SVGA (800×600)
Native Aspect Ratio

4:3
Contrast Ratio (FOFO)

20000:1
Display Color

30 Bits (1,07 billion colors)
Light Source

Lamp
Light Source Life

a. Normal 6000 hrs,b. ECO 10000 hrs,c. SmartEco 10000 hrs,d. LampSave 15000 hrs

Optical

Throw Ratio

1.96~2.15
Zoom Ratio

1.1x
Lens

F/# = 2.56 ~ 2.68, f=22~24.1mm
Projection Offset (Full-Height)

110%
Keystone Adjustment

1D, (Auto) Vertical ± 40 degrees

Compatibility

Input Lag

1 frame (16.67ms) 60Hz
Resolution Support

VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking

I/O Interface

PC in (D-sub 15pin)

(x1)
Monitor out (D-sub 15pin)

(x1)
Composite Video in (RCA)

(x1)
S-Video in (Mini DIN 4pin)

(x1)
HDMI in

(x2),HDMI-1 (1.4a/HDCP1.4),HDMI-2 (1.4a/HDCP1.4)
USB Type A

(x1)
USB Type Mini B

(x1)
RS232 in (DB-9pin)

(x1)

Audio

Speaker

(x1),10W
Audio in (3.5mm Mini Jack)

1
Audio out (3.5mm Mini Jack)

1

Environment

Power Supply

AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)

260W/110V
Acoustic Noise (Typ./Eco.)(dB)

34/29
Operating Temperature

0~40℃

Accessories

Carry Bag

Yes,5J.J3T09.001 (optiol)
Remote Control w/ Battery

RCX016
Power Cord (by region)

x1 (1.8M)
VGA(D-sub 15pin) Cable

(Standard),1 (1.5m)
3D Glasses

(Optional),DGD5
Quick Start Guide

1 (21L)
Warranty Card (by region)

Yes
Universal Ceiling Mount

(Optional),Yes, CMG3

Dimension & Weight

Dimensions (WxHxD) (mm)

296 x120 x221
Net Weight (kg)

2.3
